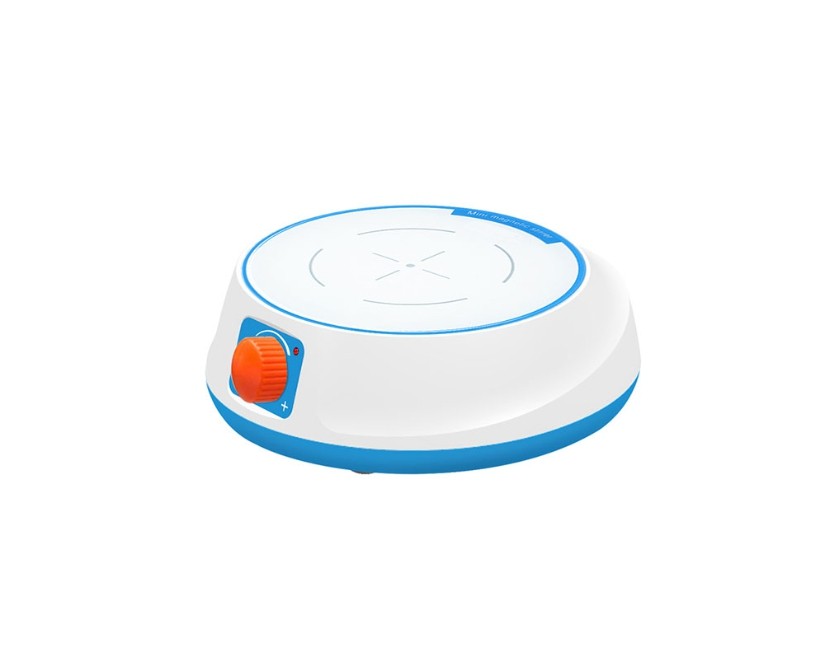

Mini type magnetic stirrer KBM-MT

Mini and compact appearance, easy to carry and simple to operate

Cat.#KBM-MT

Product Description


Application:

● Mini magnetic stirrers are available in a variety of models, mainly used for stirring or simultaneously heating and stirring low-viscosity liquid or solid-liquid mixtures. The heated mini magnetic stirrer can be combined with the heating function to heat the sample according to the specific experimental requirements to ensure that the liquid mixing meets the experimental requirements.


Main Features:

Mini and compact shape, easy to carry and easy to operate;

● Small size, light weight, low noise, maintenance-free, stable operation;

● A variety of models are available to meet different experimental needs;

● The shell of the whole machine is made of ABS material, which has the characteristics of heat resistance, low temperature resistance, corrosion resistance, no peculiar smell,     and excellent insulation performance;

● The rotary key is used to adjust the speed, and the speed can be adjusted;


                                                               Technical Parameters

Model

KBM-MT

order number

1002028001

Model Type

Basic

Maximum stirring volume (L)

2

Speed range(rpm)

0~2400

Speed mode

Stepless

Stirring bars range

20-30mm

Working plate size

φ136mm

Whether the heating function

-

Working plate material

ABS

Shell material

ABS

Motor type

DC motor

Instrument size

185*164*64

Package dimensions

280*212*82

Allowable ambient Temperature

-5~40

Allowable ambient humidity

80

Working voltage (V)

100~240

Frequency( Hz)

50-60

Input power (W)

6

Output Power

3

Net weight( kg)

0.5

Gross weight( kg)

1
