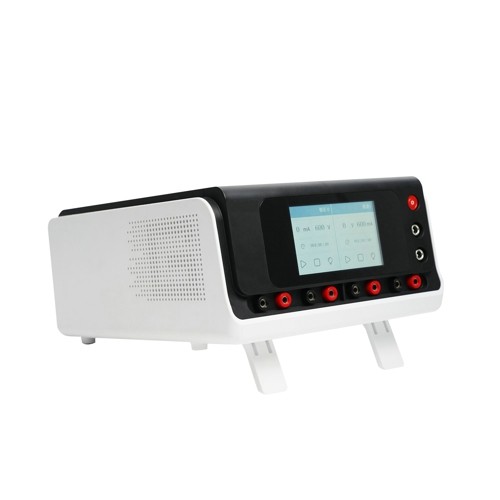

Electrophoresis Power Supply (Double Module, Programmable, High Current)

Electrophoresis Power Supply (Double Module, Programmable, High Current)

Two completely independent groups of outputs; programmable functions; can be controlled separately with blue light instruments and dispensing lights; automatic prompt for machine abnormality.

Product Introduction

This product is a rectifier that converts alternating current into direct current. it can convert

alternating current into controllable constant voltage and constant current direct current,

which meets the experimental production demand of electrophoresis and is widely used in

biology, medical etc.fields.

Product Features

1. lt can realize separate control of two groups of systems, and can stably realize the operation of two groups of constant current mode, constant voltage mode and gradient mode at the same time withoutinterfering with each other.

2.In the working state, online real-time minute adjustment is possible.

3.Intelligent PlD control, stable and reliable output.

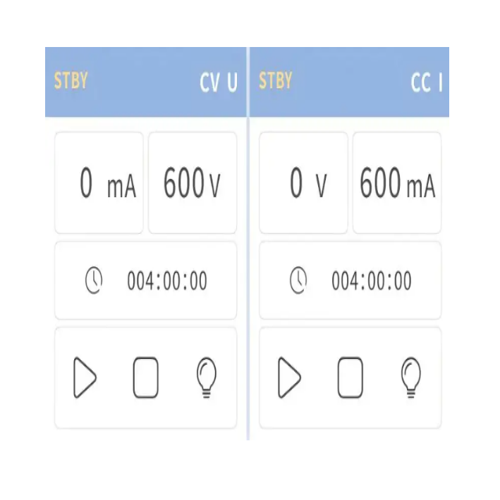

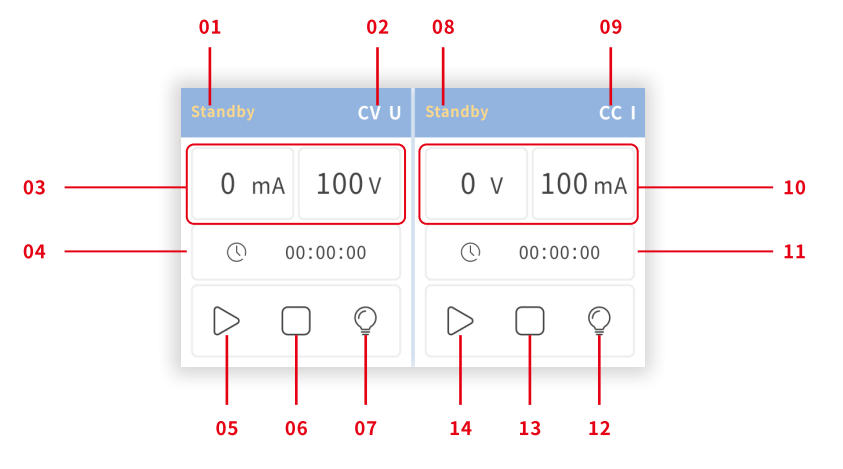

4.The high-definition touch LCD screen can display setting parameters and real-time voltage and current values.

5. High precision.

6. With constant voltage timing, constant current timing, constant voltage programming and constantcurrentprogrammingand other working modes.

7. Adopt forward switching power supply design, good stability. With overvoltage, overcurrent,overload, variable load, no-load protection, automatic alarm protection under abnormal conditions.

8. Can dynamically set output voltage or current upperlimit.

9. The parameters can be memorized when the power is turned off. if the device is powered offunexpectedly,the unfinished setting program can be run automatically after power-on.

Product Parameters

Cat.No.	KB-SPW-DM	KB-SPW-DSE	KB-SPW-6S
Output Channels	Dual independent channels, 6 output ports	Dual independent channels, 6 output ports	Single channel, 6 output ports
Output Types	Constant voltage, constant current, gradient voltage, gradient current	Constant voltage, constant current, gradient voltage, gradient current	Constant voltage, constant current, gradient voltage, gradient current
Output Terminals	Left and right independent dual power supply outputs, with independent control and no interference	Left and right independent dual power supply outputs, with independent control and no interference	Output ports connected in parallel
Output Parameters	600 V, 600 mA, 250 W+250W	500 V, 500 mA, 250 W+250W	600 V, 600 mA, 300 W
Output Voltage Range	6 V-600 V	6 V-500 V	6 V-600 V
Output Current Range	6 mA-600 mA	6 mA-500 mA	6 mA-600 mA
Timing Range	0-99 h 60 min	0-99 h 60 min	0-99 h 60 min
Pause/Resume Function	Yes	Yes	Yes
Input Power	AC 180-240V, 50/60HZ	AC 180-240V, 50/60HZ	AC 180-240V, 50/60HZ
