Small Cell Filter KB016040

Product Description

The cell filter is a sterile screening device that rapidly separates and filters primary cells from cell clusters and tissues.

It effectively removes cell aggregates or large particles from cell suspensions to ensure the accuracy of subsequent experiments such as flow cytometry and cell sorting.

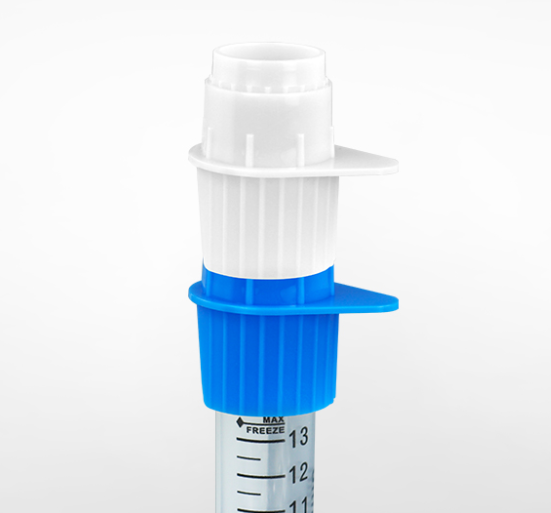

KoolBio's compact cell filter features a split-design with upper and lower cups. The filter has a diameter of 16.9mm, the lower cup has an inner diameter of 19.2mm,

with an 8.5mm outer diameter flow column. It is compatible with most commercial centrifuge tubes, flow cytometry tubes, and culture tubes with a minimum inner diameter greater

than 9mm and a maximum outer diameter less than 19mm. The upper cup performs both filtration and collection functions.

The lower cup's dual-level locking groove design enhances adaptability. Its specialized ventilation gaps and channels effectively prevent screen clogging and liquid overflow.

Features

* Split-design allows upper cup to be inverted for residual cell collection, minimizing sample loss

* Ventilation gaps and channels in lower cup prevent screen clogging and liquid overflow

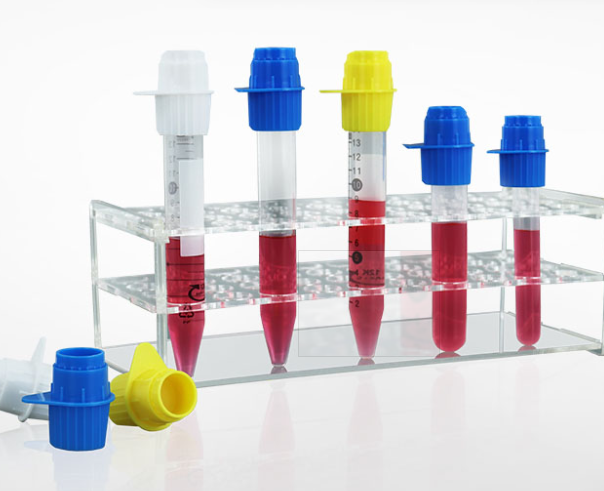

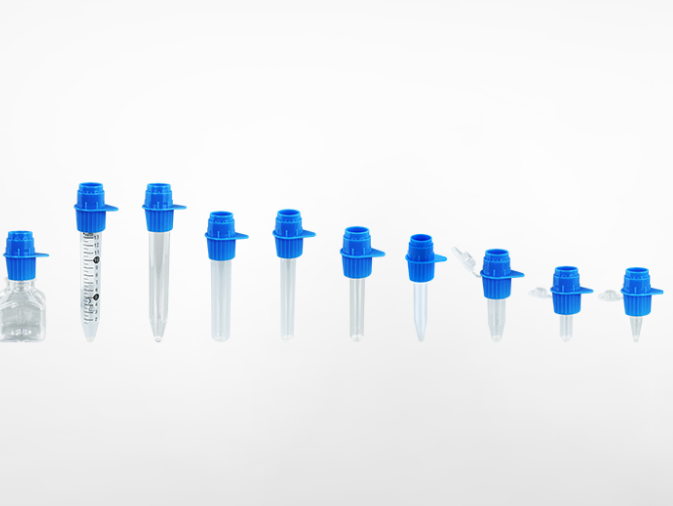

* Wide compatibility: Two-stage locking slots in lower cup accommodate most brands of 1.5mL-15mL centrifuge tubes, flow cytometry tubes, culture flasks, etc.

* Filter screens of varying pore sizes can be stacked for one-step gradient filtration

* Horizontal handle facilitates aseptic work and reduces contamination risk

* Flat mesh surface with uniform pore size ensures consistent and reliable results

* Individually packaged in easy-tear sterile pouches to prevent contamination

* Irradiation sterilized, SAL 10⁻⁶

* DNase/RNase-free, pyrogen-free, non-cytotoxic

Materials

*Frame material: Polypropylene (PP)

*Filter mesh material: Nylon

*Compliant with USP Class VI standards
